BC-AGS-080806
ActiveBoxco

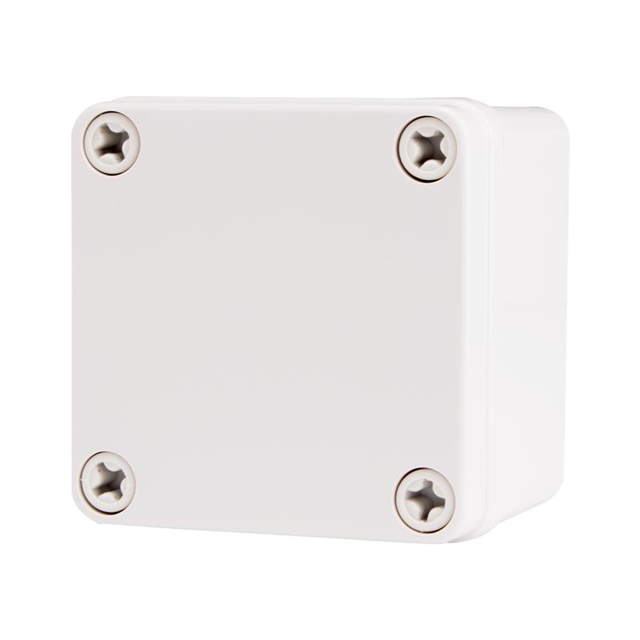

BOX ABS LGT GRY 3.15"L X 3.15"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-AGS-080806
ActiveBoxco
BOX ABS LGT GRY 3.15"L X 3.15"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-AGS-080806 |
|---|---|
| Area (L x W) | 64 cm˛ |
| Area (L x W) | 9.92 in˛ |
| Color | Light Gray |
| Container Type | Box |
| Design | Lift-Off Screw Cover |
| Features | Sealing Gasket, Wall Mount |
| Height [z] | 2.362 in |
| Height [z] | 60 mm |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.55 | |
Description
General part information
BC-AGS-080806
Box Plastic, ABS Light Gray Lift-Off Screw Cover 3.150" L x 3.150" W (80.00mm x 80.00mm) X 2.362" (60.00mm)
