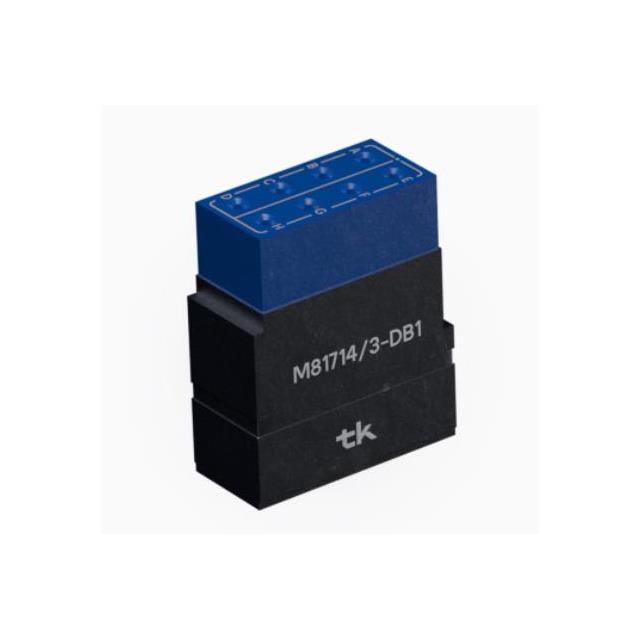

M81714/3-DB1
ActiveDME INTERCONNECT
CONN FEEDBACK MOD SZ16 0.850" L
Deep-Dive with AI
Search across all available documentation for this part.
M81714/3-DB1
ActiveDME INTERCONNECT
CONN FEEDBACK MOD SZ16 0.850" L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/3-DB1 |
|---|---|
| Contact Size | 16, 14 |
| Grade | Military |
| Module Capacity | 8 |
| Qualification | MIL-T-81714 |
| Size / Dimension [x] | 21.59 mm |
| Size / Dimension [x] | 0.85 " |
| Size / Dimension [y] | 9.91 mm |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [z] | 26.21 mm |
| Size / Dimension [z] | 1.032 in |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5 | $ 138.60 | |
| 20 | $ 104.30 | |||
| 50 | $ 98.04 | |||
| 250 | $ 93.87 | |||
Description
General part information
M81714/3-DB1
Connector Module Contact Size 14, 16
Documents
Technical documentation and resources
No documents available
