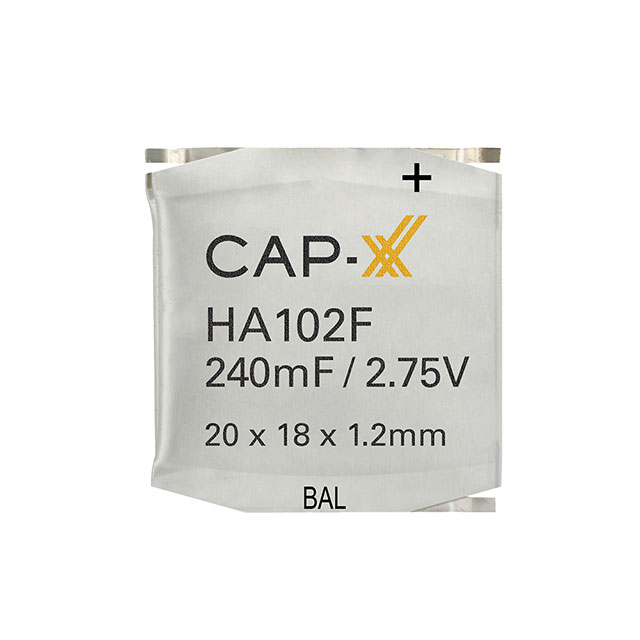

HA102F
ActiveCAP-XX Ltd Supercapacitors
CAP 240MF 2.75V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
HA102F
ActiveCAP-XX Ltd Supercapacitors
CAP 240MF 2.75V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HA102F |
|---|---|
| Capacitance | 240 mF |
| ESR (Equivalent Series Resistance) | 72 mOhms |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 0.709 in |
| Size / Dimension [y] | 18 mm |
| Tolerance | 20 % |
| Voltage - Rated | 2.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HA102F
240 mF (EDLC) Supercapacitor 2.75 V 2-SMD 72mOhm
Documents
Technical documentation and resources
No documents available
