LUB-3007-BE-001-J-29
ActiveLinkplex

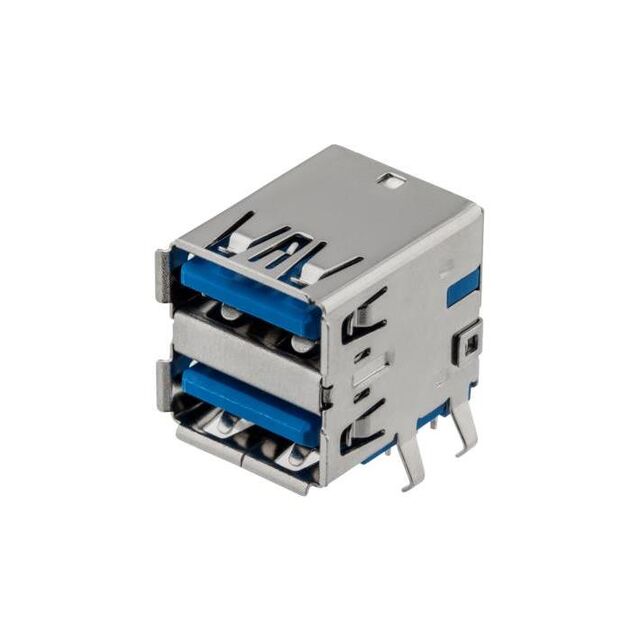

CONN USB 3.2 GEN 1 TYPE-A STACK
Deep-Dive with AI
Search across all available documentation for this part.
LUB-3007-BE-001-J-29
ActiveLinkplex
CONN USB 3.2 GEN 1 TYPE-A STACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LUB-3007-BE-001-J-29 |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Tin, Gold |
| Current Rating (Amps) | 1.8 A, 0.25 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Voltage - Rated | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.12 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.45 | |||
| 40 | $ 1.38 | |||
| 80 | $ 1.28 | |||
| 230 | $ 1.14 | |||
| 440 | $ 1.06 | |||
| 945 | $ 0.98 | |||
| 2400 | $ 0.89 | |||
Description
General part information
LUB-3007-BE-001-J-29
USB-A (USB TYPE-A), Stacked USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 18 Position Through Hole, Right Angle
Documents
Technical documentation and resources
No documents available
