1000570034
UnknownMolex - Temp Flex
CBL RIBN 20COND 0.05 BLUE 50'
Deep-Dive with AI
Search across all available documentation for this part.
1000570034
UnknownMolex - Temp Flex
CBL RIBN 20COND 0.05 BLUE 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1000570034 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| First Conductor Mark | Blue |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Blue |
| Length | Enter Number of Feet in Order Quantity |
| Length | 15.24 m |
| Length | 50 ft |
| Number of Conductors | 20 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20424 |
| Ribbon Width | 1 in |
| Ribbon Width | 25.4 mm |
| Shielding | Unshielded |
| Spool Size | 30.48 m |
| Spool Size | 100 ft |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 11.44 | |
| 2 | $ 10.37 | |||
| 3 | $ 9.78 | |||
| 5 | $ 9.10 | |||
| 7 | $ 8.67 | |||
| 10 | $ 8.24 | |||
| 25 | $ 7.23 | |||
| 50 | $ 6.55 | |||
| 100 | $ 5.94 | |||
Description
General part information
1000570034

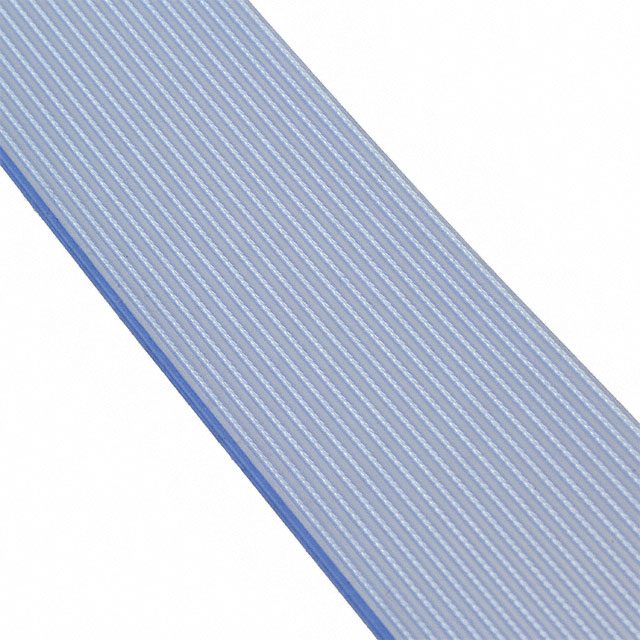

Flat Ribbon Cable Blue 20 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
