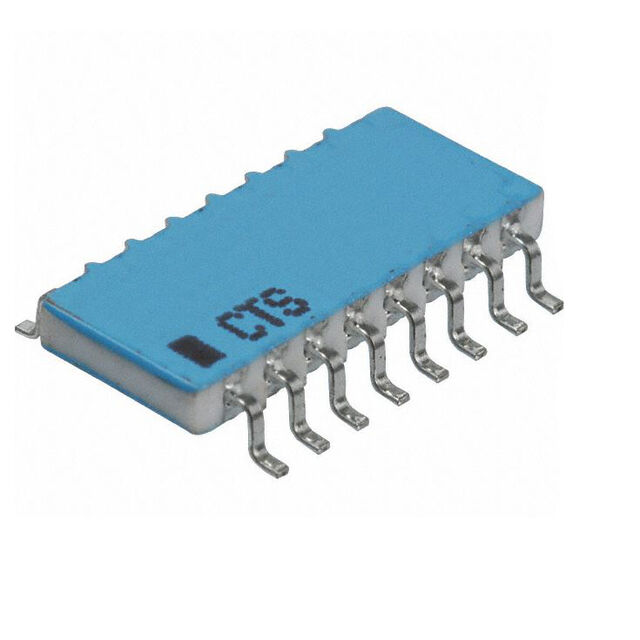

767161394G
ObsoleteTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 15 RES 390K OHM 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
767161394G
ObsoleteTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 15 RES 390K OHM 16SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 767161394G |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) [Max] | 0.093 " |
| Height - Seated (Max) [Max] | 2.36 mm |
| Mounting Type | Surface Mount |
| Number of Pins | 16 |
| Number of Resistors | 15 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.22 in |
| Package / Case [y] | 5.59 mm |
| Resistance (Ohms) | 390 kΩ |
| Size / Dimension [x] | 11.18 mm |
| Size / Dimension [x] | 0.44 " |
| Size / Dimension [y] | 0.22 " |
| Size / Dimension [y] | 5.59 mm |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
767161394G
390k Ohm ±2% 100mW Power Per Element Bussed 15 Resistor Network/Array ±100ppm/°C 16-SOIC (0.220", 5.59mm Width)
