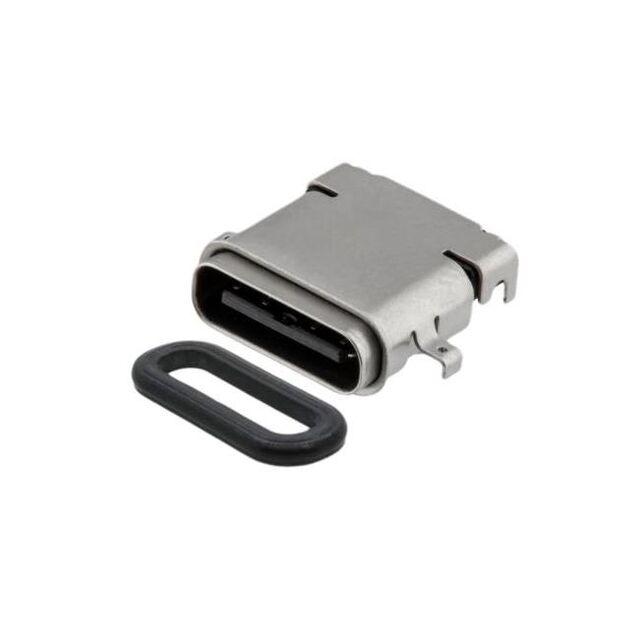

LWP-C106D-004-G-19
ActiveLinkplex
USB 3.2 GEN 2 TYPE C 24P IPX7
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LWP-C106D-004-G-19
ActiveLinkplex
USB 3.2 GEN 2 TYPE C 24P IPX7
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LWP-C106D-004-G-19 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A, 5 A |
| Gender | Receptacle |
| Ingress Protection | IPX7 - Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.70 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.05 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.83 | |||
| Digi-Reel® | 1 | $ 2.70 | ||
| 10 | $ 2.29 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.05 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.83 | |||
| Tape & Reel (TR) | 700 | $ 1.51 | ||
| 1400 | $ 1.42 | |||
| 2100 | $ 1.40 | |||
Description
General part information
LWP-C106D-004-G-19
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
