Technical Specifications
Parameters and characteristics for this part
| Specification | 3ACEW_24S4 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CE, cURus, UL |
| Current - Output (Max) [Max] | 215 mA |
| Efficiency | 79 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.69 " |
| Size / Dimension [z] | 17.6 mm |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 305 VAC, 430 VDC |
| Voltage - Input [Min] | 100 V, 85 VAC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

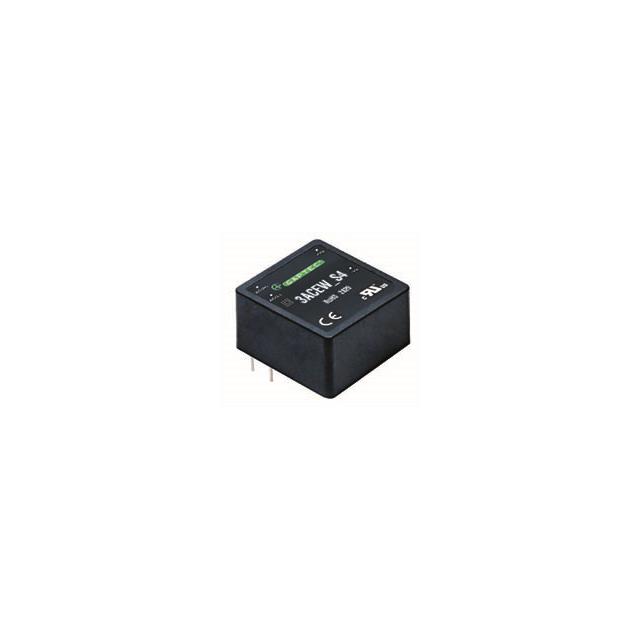

3ACEW_24S4
Enclosed AC DC Converters 1 Output 24V 215mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
