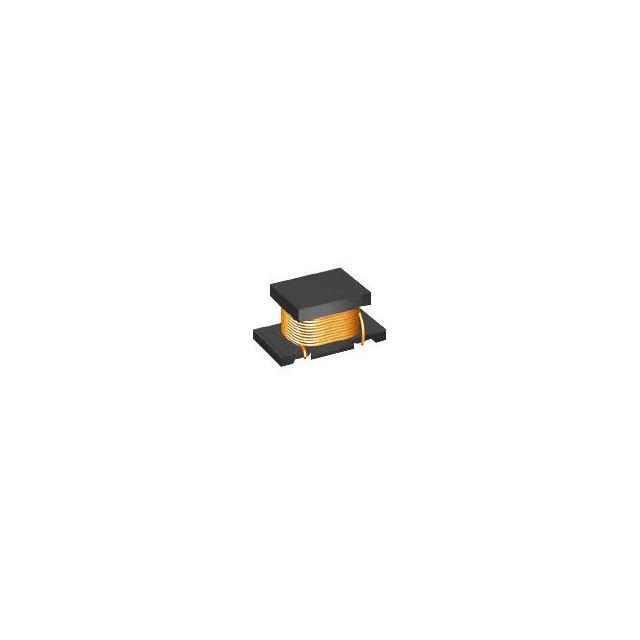

CTLQ1210CF-561K
ActiveCentral Technologies
560UH 60MA SMD WW INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
CTLQ1210CF-561K
ActiveCentral Technologies
560UH 60MA SMD WW INDUCTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CTLQ1210CF-561K |
|---|---|
| Current Rating (Amps) | 60 mA |
| DC Resistance (DCR) | 30 Ohm |
| Frequency - Self Resonant | 5 MHz |
| Height - Seated (Max) [Max] [z] | 0.087 in |
| Height - Seated (Max) [Max] [z] | 2.2 mm |
| Inductance | 560 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Unshielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.49 | |
| 500 | $ 0.40 | |||
| 1000 | $ 0.31 | |||
Description
General part information
CTLQ1210CF-561K
560 µH Unshielded Wirewound Inductor 60 mA 30Ohm Max 1210 (3225 Metric)
Documents
Technical documentation and resources
No documents available
