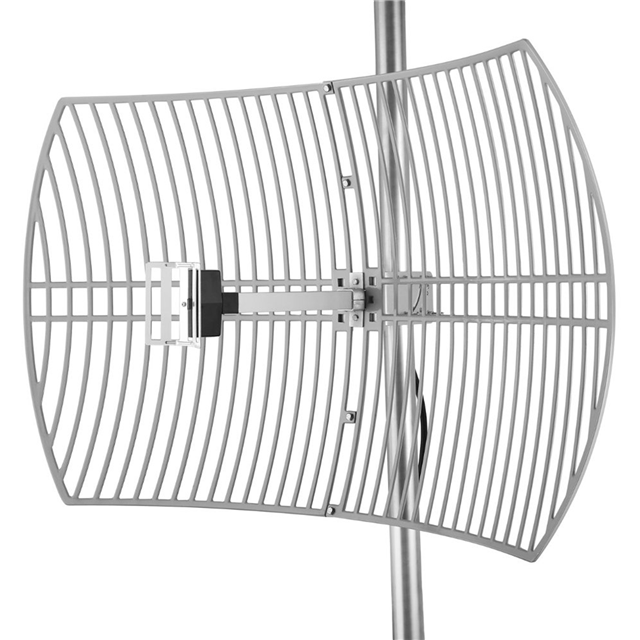

WAG24021
ActiveTurmode
GRID PARABOLIC WIFI ANTENNA FOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WAG24021 |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | UNII, WLAN, ISM |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 27 dB |
| Height (Max) [Max] | 19.69 in |
| Height (Max) [Max] | 500.13 mm |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 261.98 | |
| 5 | $ 248.89 | |||
| 10 | $ 235.79 | |||
| 20 | $ 222.69 | |||
| 50 | $ 209.59 | |||
Description
General part information
WAG24021
RF ANTENNA ISM, UNII, WLAN Parabolic Grid N Type Female Bracket Mount
