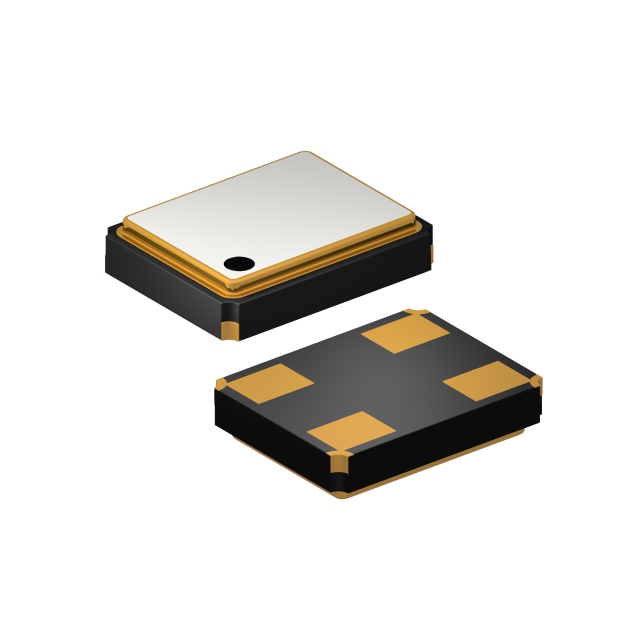

SXT22414BA38-22.1184M
ActiveSuntsu Electronics, Inc
CRYSTAL 22.1184MHZ 14PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SXT22414BA38-22.1184M
ActiveSuntsu Electronics, Inc
CRYSTAL 22.1184MHZ 14PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SXT22414BA38-22.1184M |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 22.1184 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 14 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.60 | |
| 10 | $ 0.57 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.43 | |||
Description
General part information
SXT22414BA38-22.1184M
22.1184 MHz ±30ppm Crystal 14pF 80 Ohms 4-SMD, No Lead
