A751259
ActiveEXXELIA Sic Safco

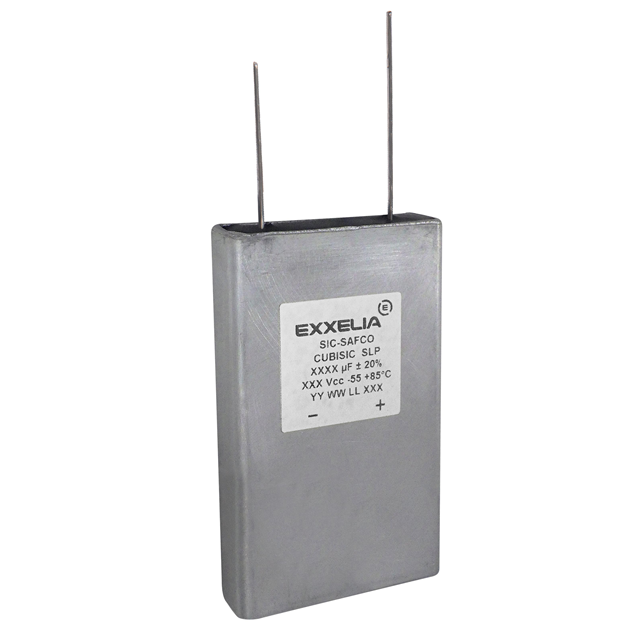

CAP ALUM 110UF 20% 400V FLATPACK
Deep-Dive with AI
Search across all available documentation for this part.
A751259
ActiveEXXELIA Sic Safco
CAP ALUM 110UF 20% 400V FLATPACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A751259 |
|---|---|
| Applications | General Purpose |
| Capacitance | 110 µF |
| ESR (Equivalent Series Resistance) | 534 mOhm |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Lead Spacing | 25.4 mm |
| Lead Spacing | 1 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | FlatPack |
| Polarization | Polar |
| Ripple Current @ High Frequency | 2.2 A |
| Size / Dimension [x] | 38 mm |
| Size / Dimension [x] | 1.496 " |
| Size / Dimension [y] | 1.772 " |
| Size / Dimension [y] | 45 mm |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.50 | |
| 10 | $ 85.95 | |||
Description
General part information
A751259
110 µF 400 V Aluminum Electrolytic Capacitors FlatPack 534mOhm @ 100Hz 5000 Hrs @ 85°C
Documents
Technical documentation and resources
No documents available
