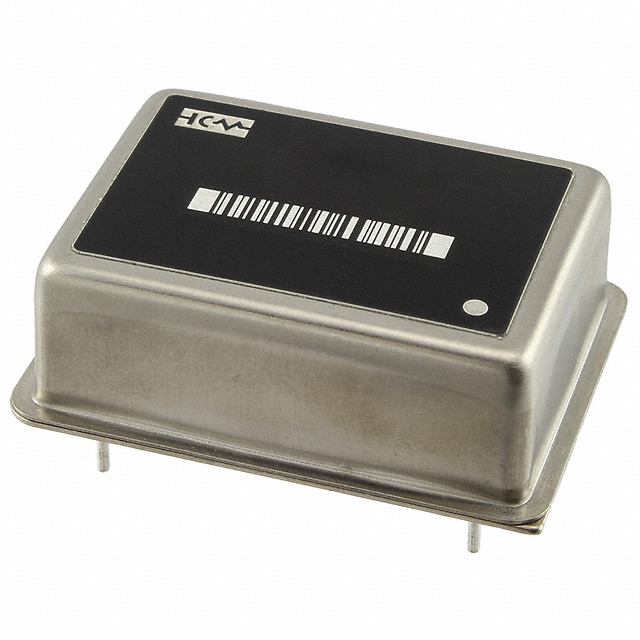

OH200-61003CF-025.0M
ActiveConnor Winfield
XTAL OSC OCXO 25.0000MHZ CMOS TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OH200-61003CF-025.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.15 A |
| Frequency | 25 MHz |
| Frequency Stability | 5 ppb |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 5 Leads |
| Package / Case | 6-DIP Module |
| Size / Dimension [x] | 1.417 in |
| Size / Dimension [x] | 36 mm |
| Size / Dimension [y] | 1.063 in |
| Size / Dimension [y] | 27 mm |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 92.27 | |
| 10 | $ 81.25 | |||
Description
General part information
OH200-61003CF-025.0M
25 MHz OCXO CMOS Oscillator 3.3V 6-DIP Module, 5 Leads
