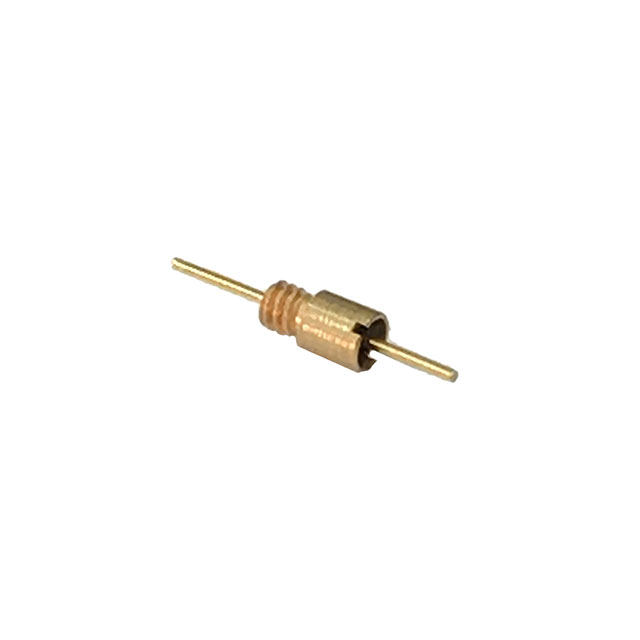

B2C152B
ActiveEMI FILTER COMPANY
FILTER, B2, C CIRC, 1500PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B2C152B
ActiveEMI FILTER COMPANY
FILTER, B2, C CIRC, 1500PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B2C152B |
|---|---|
| Capacitance | 1500 pF |
| Current | 5 A |
| Insertion Loss | 23 dB |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension [diameter] | 0.105 in |
| Size / Dimension [diameter] | 2.67 mm |
| Size / Dimension [x] | 5.08 mm |
| Size / Dimension [x] | 0.2 in |
| Temperature Coefficient | X7R |
| Thread Size | 2-56 |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.94 | |
| 25 | $ 13.29 | |||
| 50 | $ 12.75 | |||
| 100 | $ 9.58 | |||
| 250 | $ 7.98 | |||
| 500 | $ 7.01 | |||
| 1000 | $ 6.39 | |||
| 2500 | $ 5.94 | |||
| 5000 | $ 5.48 | |||
Description
General part information
B2C152B
1500 pF Feed Through Capacitor 100V 5 A Axial, Bushing
