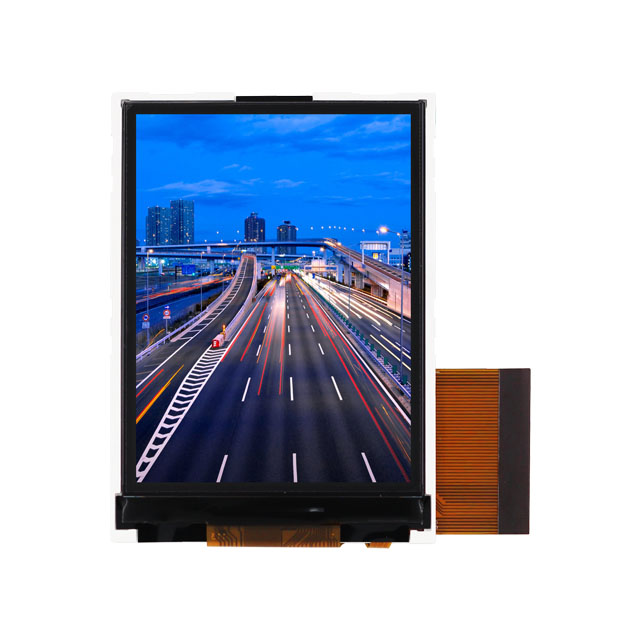

DLC0283BDP04DF-4
ActiveDLC Display Co.,Ltd
2.83" IPS TFT 240X320
Deep-Dive with AI
Search across all available documentation for this part.
DLC0283BDP04DF-4
ActiveDLC Display Co.,Ltd
2.83" IPS TFT 240X320
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0283BDP04DF-4 |
|---|---|
| Backlight | LED |
| Controller Type | ILI9341V |
| Diagonal Screen Size | 71.88 mm |
| Diagonal Screen Size | 2.83 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.18 mm |
| Dot Pitch [y] | 0.18 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | RGB, CPU |
| Viewing Area [x] | 46.2 mm |
| Viewing Area [y] | 63.88 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.18 | |
| 10 | $ 24.41 | |||
| 100 | $ 21.32 | |||
| 500 | $ 19.56 | |||
Description
General part information
DLC0283BDP04DF-4
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) CPU, RGB 2.83" (71.88mm) 240 x 320
Documents
Technical documentation and resources
No documents available
