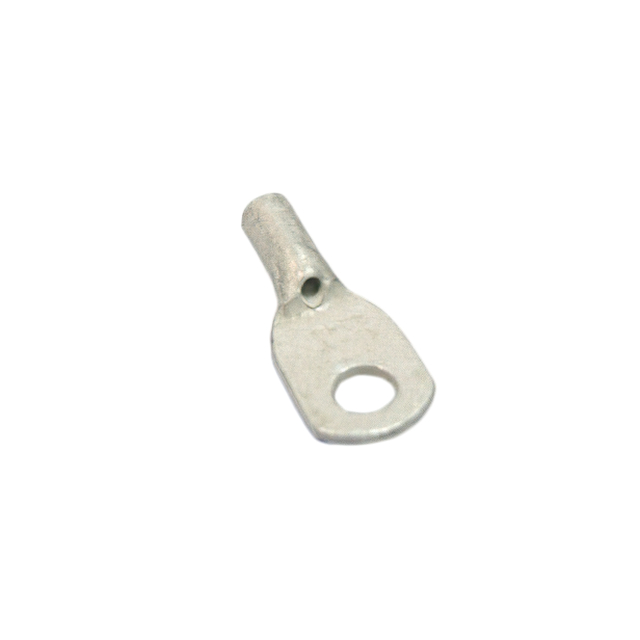

YAV18BOX
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 22-18
Deep-Dive with AI
Search across all available documentation for this part.
YAV18BOX
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 22-18
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YAV18BOX |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.76 in |
| Length - Overall [x] | 19.3 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud, 10 Stud, 9 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [y] | 0.13 in |
| Width - Outer Edges [y] | 3.3 mm |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.04 | |
Description
General part information
YAV18BOX
Ring Terminal Connector 8, 9, 10 Stud Circular 18-22 AWG Crimp
Documents
Technical documentation and resources
No documents available
