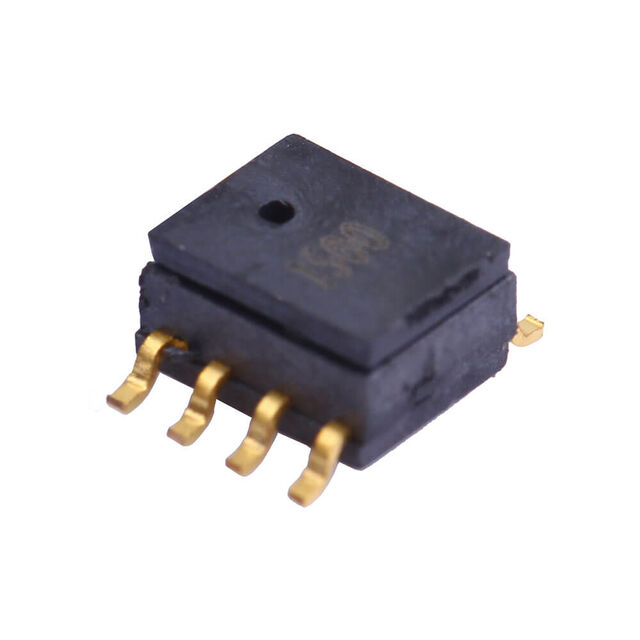

XGZP170701A
ActiveCFSensor
PRESSURE SENSOR 101.5PSI(700KPA)
Deep-Dive with AI
Search across all available documentation for this part.
XGZP170701A
ActiveCFSensor
PRESSURE SENSOR 101.5PSI(700KPA)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP170701A |
|---|---|
| Applications | Board Mount |
| Features | mV Output |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] | 101.53 PSI |
| Operating Pressure [Max] | 7 bar |
| Operating Pressure [Min] | -1 bar |
| Operating Pressure [Min] | -14.5 PSI |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output [Max] | 120 mV |
| Output [Min] | 0.06 V |
| Output Type | Analog |
| Package / Case | 8-SMD |
| Port Style | No Port |
| Supplier Device Package | 8-SMT |
| Termination Style | Surface Mount (SMD,SMT) |
| Voltage - Supply | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 1.51 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.32 | |||
| 500 | $ 1.14 | |||
Description
General part information
XGZP170701A
Pressure Sensor -14.5PSI ~ 101.53PSI (-100kPa ~ 700kPa) Absolute 60 mV ~ 120 mV 8-SMD
Documents
Technical documentation and resources
No documents available
