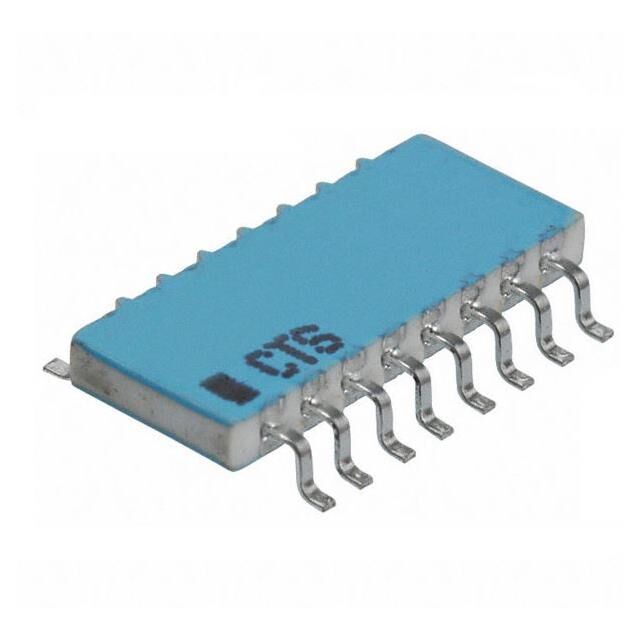

766161121GP
ActiveTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 15 RES 120 OHM 16SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
766161121GP
ActiveTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 15 RES 120 OHM 16SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 766161121GP |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) [Max] | 1.75 mm |
| Height - Seated (Max) [Max] | 0.069 in |
| Mounting Type | Surface Mount |
| Number of Pins | 16 |
| Number of Resistors | 15 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Power Per Element | 80 mW |
| Resistance (Ohms) | 120 Ohms |
| Size / Dimension [x] | 0.39 ", 9.9 mm |
| Size / Dimension [y] | 3.9 mm, 0.154 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 833 | $ 1.72 | |
Description
General part information
766161121GP
120 Ohm ±2% 80mW Power Per Element Bussed 15 Resistor Network/Array ±100ppm/°C 16-SOIC (0.154", 3.90mm Width)
