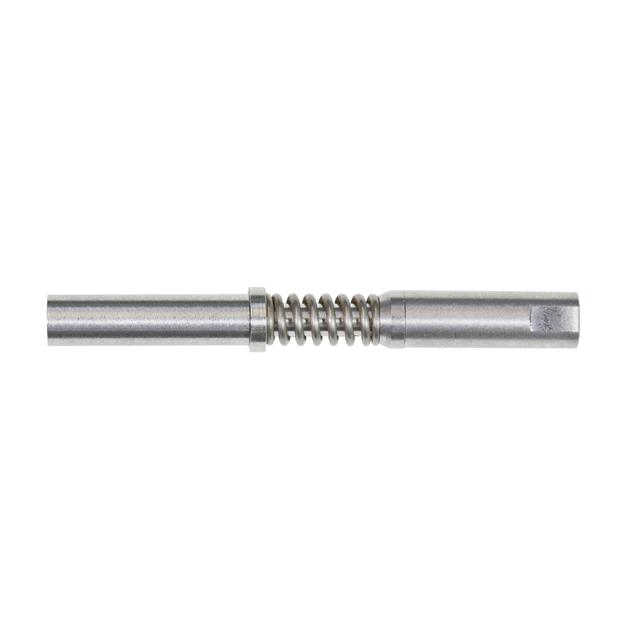

XOS29504-5-SM-2200-1260-C2
ActiveXiOptics, LLC
COTS D38999 OPTICAL SOCKET TERMI
Deep-Dive with AI
Search across all available documentation for this part.
XOS29504-5-SM-2200-1260-C2
ActiveXiOptics, LLC
COTS D38999 OPTICAL SOCKET TERMI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XOS29504-5-SM-2200-1260-C2 |
|---|---|
| Attenuation - Typ | -1 dB |
| Body Material | Stainless Steel |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Ferrule Material | Ceramic |
| Fiber Cladding Diameter [diameter] | 126 µm |
| Housing Material | Stainless Steel |
| Mating Cycles | 500 |
| Mode | Singlemode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -55 °C |
| Simplex/Duplex | Simplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XOS29504-5-SM-2200-1260-C2
Fiber Optic Receptacle Connector Simplex 126µm
Documents
Technical documentation and resources
No documents available
