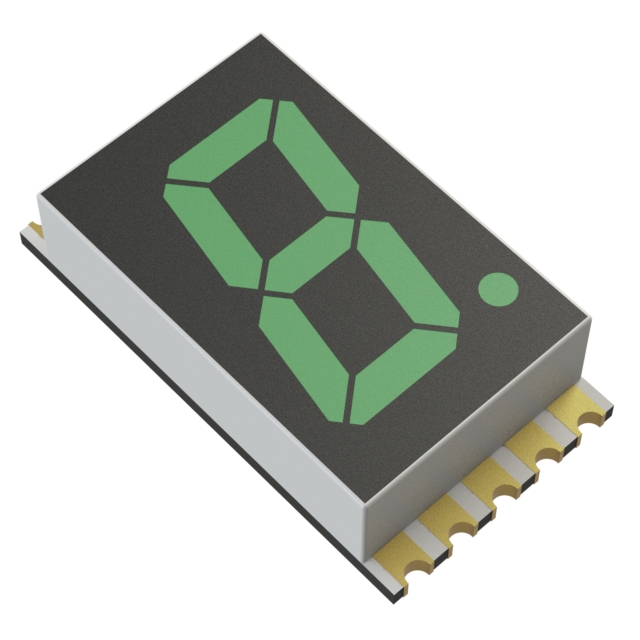

INND-SS56GCB
ActiveInolux
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
INND-SS56GCB
ActiveInolux
DISPLAY 7SEG 0.56" SGL GRN 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | INND-SS56GCB |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 70 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 114 mW |
| Size / Dimension [x] | 3.25 mm |
| Size / Dimension [x] | 0.128 in |
| Size / Dimension [y] | 0.488 in |
| Size / Dimension [y] | 12.4 mm |
| Size / Dimension [z] | 0.748 in |
| Size / Dimension [z] | 19 mm |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Peak | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3750 | $ 0.67 | |
Description
General part information
INND-SS56GCB
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 3.2V 20mA 0.748" H x 0.488" W x 0.128" D (19.00mm x 12.40mm x 3.25mm) 10-SMD, No Lead
