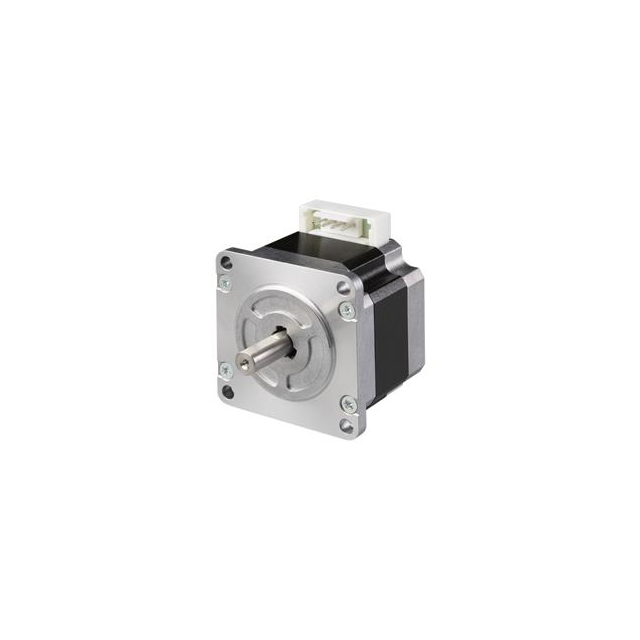

SM2563C60B41
ActiveSanyo Denki SanMotion Products
F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM2563C60B41
ActiveSanyo Denki SanMotion Products
F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2563C60B41 |
|---|---|
| Coil Resistance | 0.25 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 6 A |
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Length - Shaft and Bearing | 20.6 mm |
| Length - Shaft and Bearing [x] | 0.811 in |
| Mounting Hole Spacing | 47.14 mm |
| Mounting Hole Spacing | 1.856 in |
| Rotor Inertia | 12.024 gcm² |
| Size / Dimension [x] | 56 mm |
| Size / Dimension [x] | 2.205 in |
| Size / Dimension [y] | 2.205 in |
| Size / Dimension [y] | 56 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 2350 mNm |
| Torque - Holding (oz-in / mNm) | 333 oz-in |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.16 | |
| 5 | $ 81.02 | |||
| 10 | $ 78.12 | |||
| 25 | $ 74.46 | |||
| 50 | $ 71.80 | |||
| 100 | $ 70.00 | |||
Description
General part information
SM2563C60B41
Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 6 A 24VDC
