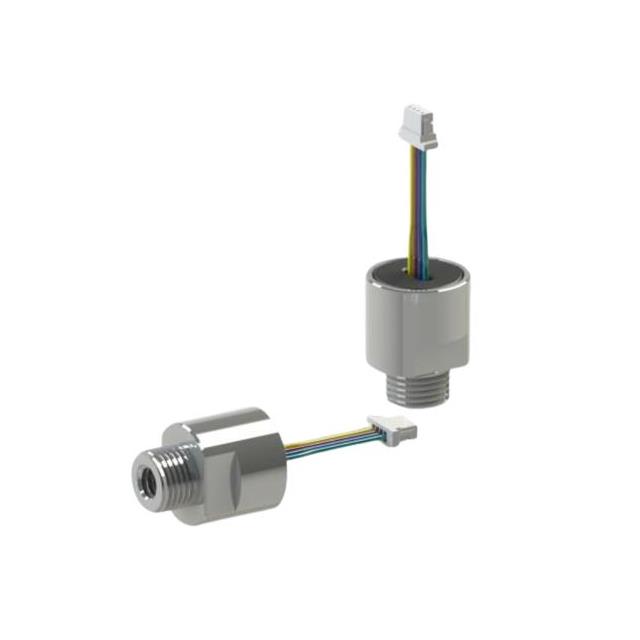

86A-101BG-7210
ActiveAngst+Pfister Sensors and Power AG
0100MBAR, CERAMIC CELL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86A-101BG-7210
ActiveAngst+Pfister Sensors and Power AG
0100MBAR, CERAMIC CELL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 86A-101BG-7210 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Industrial |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 4.35 PSI |
| Maximum Pressure [Max] | 30 kPa |
| Operating Pressure | 1.45 PSI |
| Operating Pressure | 10 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Metal |
| Port Size | G1/8 |
| Port Size | 3.18 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Can | 1 | $ 55.00 | |
| 10 | $ 45.00 | |||
Description
General part information
86A-101BG-7210
Pressure Sensor 1.45PSI (10kPa) Gauge Male - G1/8" (3.18mm) 0.5 V ~ 4.5 V Cylinder, Metal
