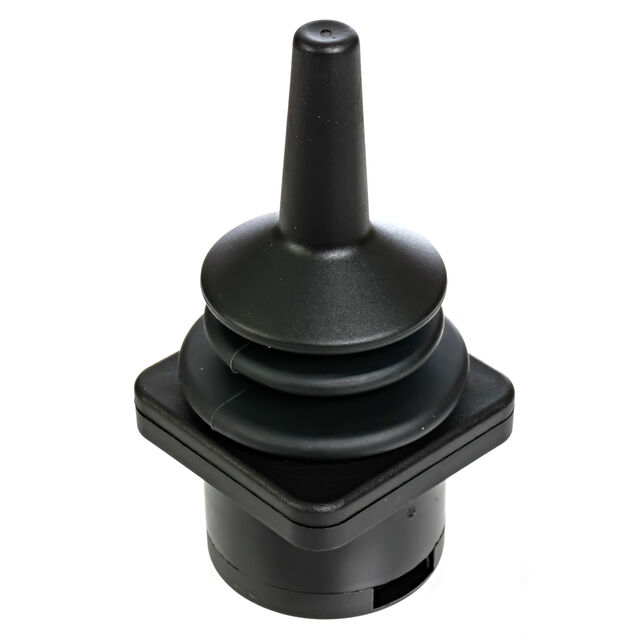

HE1-22-S-A-1-BK
ActiveRuffy Controls Inc.
SWITCH JOYSTICK HALL EFFECT 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HE1-22-S-A-1-BK
ActiveRuffy Controls Inc.
SWITCH JOYSTICK HALL EFFECT 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HE1-22-S-A-1-BK |
|---|---|
| Electrical Life | 5000000 Cycles |
| Mechanical Life | 5000000 Cycles |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output | Analog (Hall Effect) |
| Panel Cutout Dimensions [diameter] | 41.4 mm |
| Switch Function | 2 Axis |
| Type | Joystick, 2 - Axis |
| Voltage - Supply | 5 V |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 159.55 | |
| 10 | $ 111.68 | |||
| 25 | $ 105.50 | |||
Description
General part information
HE1-22-S-A-1-BK
Joystick, 2 - Axis Analog (Hall Effect) Output
