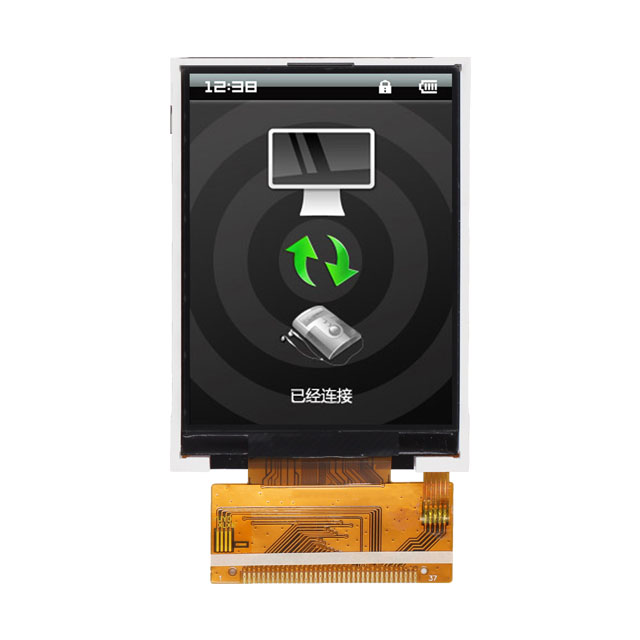

DLC0283BCM04CB-1
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY TFT RGB 2.8"
Deep-Dive with AI
Search across all available documentation for this part.
DLC0283BCM04CB-1
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY TFT RGB 2.8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0283BCM04CB-1 |
|---|---|
| Backlight | LED |
| Controller Type | ST7789V |
| Diagonal Screen Size | 2.8 in |
| Diagonal Screen Size | 71.12 mm |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.18 mm |
| Dot Pitch [y] | 0.18 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | MCU |
| Viewing Area [x] | 46 mm |
| Viewing Area [y] | 60.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.92 | |
| 10 | $ 18.28 | |||
| 360 | $ 14.64 | |||
Description
General part information
DLC0283BCM04CB-1
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color MCU 2.8" (71.12mm) 240 x 320
Documents
Technical documentation and resources
No documents available
