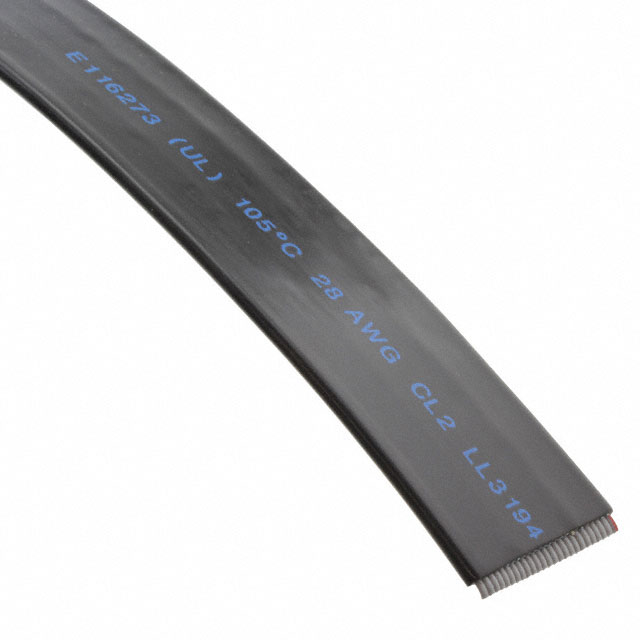

151-2831-010
UnknownAmphenol Spectra-Strip
CBL RIBN 10COND 0.05 BLACK 10'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
151-2831-010
UnknownAmphenol Spectra-Strip
CBL RIBN 10COND 0.05 BLACK 10'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 151-2831-010 |
|---|---|
| Cable Type | Flat Cable, Flat Jacket |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Current Rating (Amps) | 1 A |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length [x] | 3.05 m |
| Length [x] | 10 ft |
| Number of Conductors | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ribbon Thickness | 0.095 " |
| Ribbon Thickness | 2.41 mm |
| Ribbon Width [custom] | 0.5 " |
| Ribbon Width [custom] | 12.7 mm |
| Shielding | Shielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 30.77 | |
Description
General part information
151-2831-010
Flat Ribbon Cable Black 10 Conductors 0.050" (1.27mm) Flat Cable, Flat Jacket 10.0' (3.05m)
