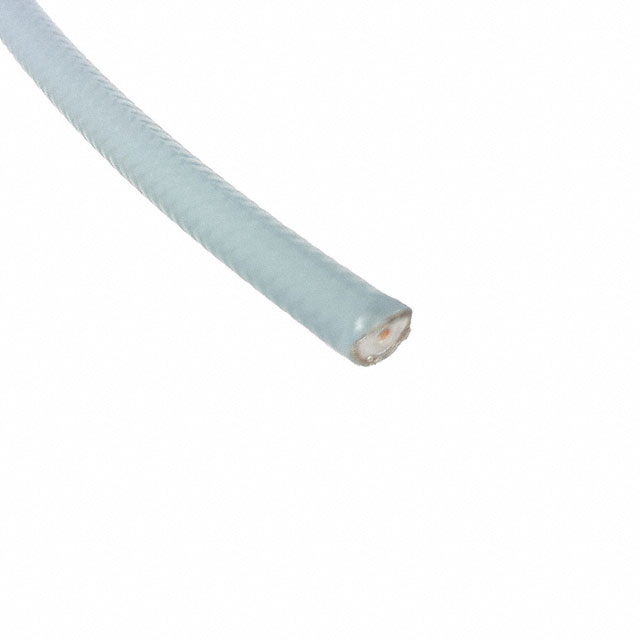

88127-L25
ActiveCinch Connectivity Solutions Semflex
CABLE HP 190S 25 FT LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
88127-L25
ActiveCinch Connectivity Solutions Semflex
CABLE HP 190S 25 FT LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 88127-L25 |
|---|---|
| Cable Group | HP190S |
| Cable Type | Coaxial |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 3.84 mm |
| Dielectric Diameter [diameter] | 0.151 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 5.97 mm |
| Jacket (Insulation) Diameter [diameter] | 0.235 in |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP), Polyurethane (PU) |
| Jacket Color | Blue |
| Length | 25 ft |
| Length | 7.62 m |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Material | Copper, Silver Coated |
| Shield Type | Foil, Braid |
| VoP, Velocity of Propagation | 75 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
88127-L25
Coaxial Cable HP190S 25.0' (7.62m) 50 Ohms
