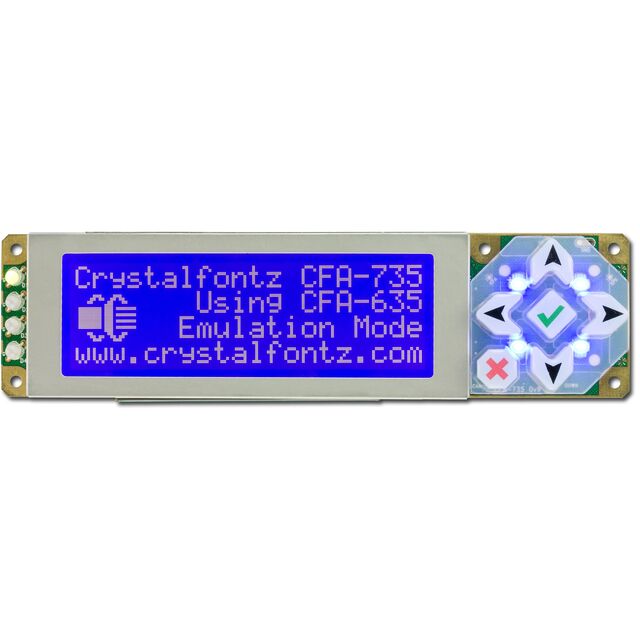

CFA735-TML-KR
ActiveCrystalfontz
20X4 CHARACTER USB DISPLAY MODUL
Deep-Dive with AI
Search across all available documentation for this part.
CFA735-TML-KR
ActiveCrystalfontz
20X4 CHARACTER USB DISPLAY MODUL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CFA735-TML-KR |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Controller Type | STM32 |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.3 mm |
| Dot Size [y] | 0.33 mm |
| Interface | Serial, USB |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 142 mm |
| Outline L x W x H [y] | 38 mm |
| Outline L x W x H [z] | 21 mm |
| Text Color | White |
| Viewing Area [x] | 83.1 mm |
| Viewing Area [y] | 27.54 mm |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 185.15 | |
| 10 | $ 178.85 | |||
| 20 | $ 164.63 | |||
| 50 | $ 155.75 | |||
| 100 | $ 144.48 | |||
| 200 | $ 135.94 | |||
| 500 | $ 134.47 | |||
| 1000 | $ 129.50 | |||
Description
General part information
CFA735-TML-KR
Character Display Module Transmissive STN - Super-Twisted Nematic LED - White Serial, USB 142.00mm x 38.00mm x 21.00mm
Documents
Technical documentation and resources
No documents available
