XE-3660-001
ActiveLABFACILITY

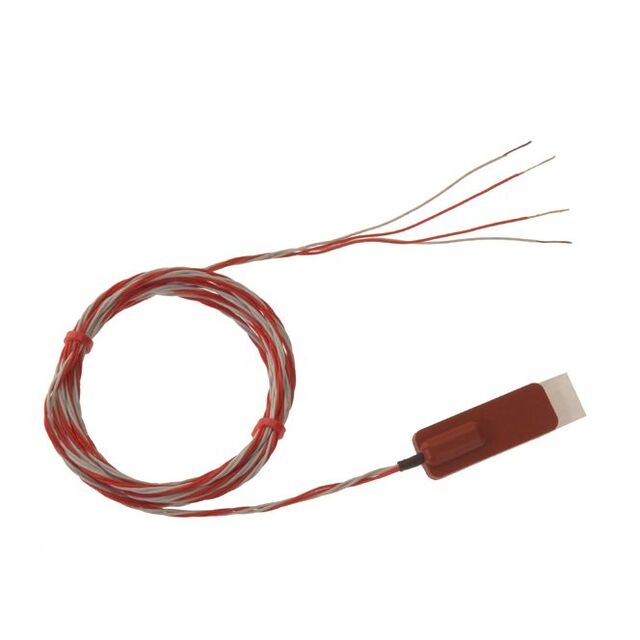

SENSOR RTD PATCH 2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XE-3660-001
ActiveLABFACILITY
SENSOR RTD PATCH 2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XE-3660-001 |
|---|---|
| Conductor Type | Grounded |
| Diameter - Protective Tube [diameter] | 15 mm |
| Element Type | Pt100 |
| Length - Lead Wire [x] | 6.562 ft |
| Length - Lead Wire [x] | 2 m |
| Length - Protective Tube [x] | 40 mm |
| Temperature Range [Max] | 250 °C |
| Temperature Range [Min] | -58 °F |
| Terminal Type | Exposed Lead Wires |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 46.22 | |
| 10 | $ 36.38 | |||
| 25 | $ 32.93 | |||
| 50 | $ 30.47 | |||
| 100 | $ 28.14 | |||
| 250 | $ 25.22 | |||
Description
General part information
XE-3660-001
Pt100 Temperature Sensor -50°C ~ 250°C Grounded Exposed Lead Wires
Documents
Technical documentation and resources
