T0005669
ActiveTEKTELIC Communications Inc.

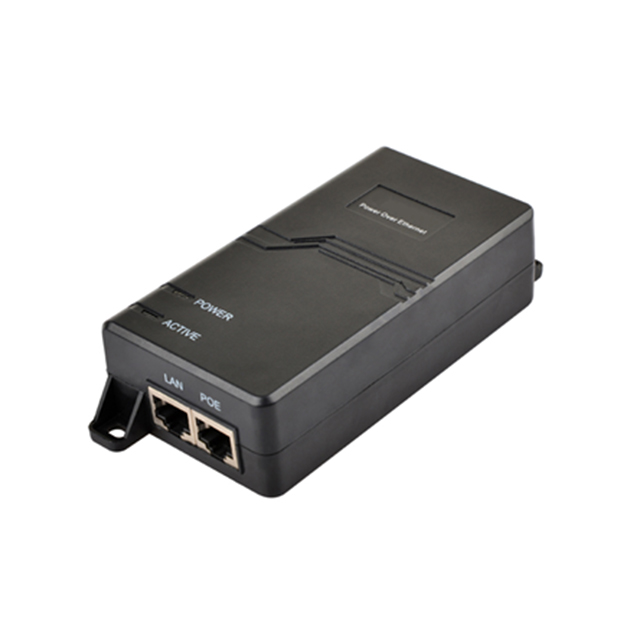

NA POE INJECTOR FOR LORA GATEWAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T0005669
ActiveTEKTELIC Communications Inc.
NA POE INJECTOR FOR LORA GATEWAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T0005669 |
|---|---|
| Approval Agency | FCC, CE |
| Current - Output | 1 A |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | Level VI |
| Features | OTP, SCP, OVP, OCP |
| Input Connector | IEC 320-C6 (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 55 W |
| Size / Dimension [x] | 139 mm |
| Size / Dimension [x] | 5.47 in |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 36 mm |
| Size / Dimension [z] | 1.42 in |
| Type | Passive Injector |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.00 | |
Description
General part information
T0005669
55V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate
