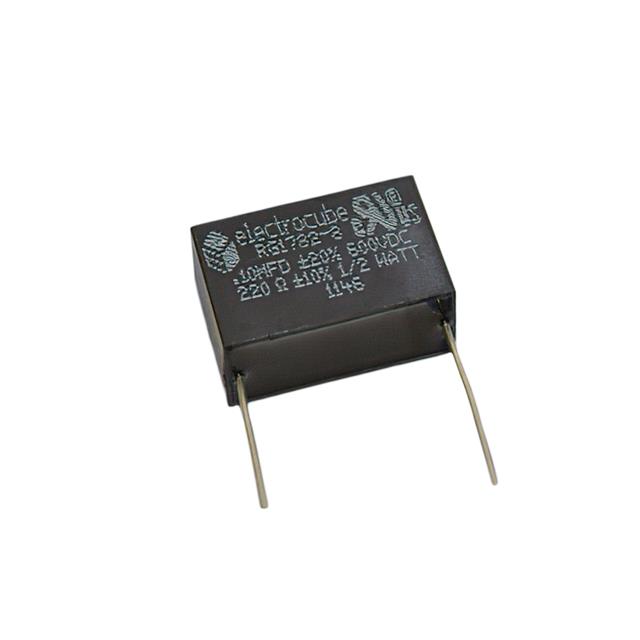

RG1782-8
ActiveElectrocube
FILTER RC 220OHM/0.1UF TH
Deep-Dive with AI
Search across all available documentation for this part.
RG1782-8
ActiveElectrocube
FILTER RC 220OHM/0.1UF TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1782-8 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 16.76 mm |
| Height [z] | 0.66 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [y] | 9.65 mm |
| Technology | RC |
| Type | Low Pass |
| Values | 220 Ohms, 0.1 µF |
| Voltage - Rated | 600 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 57.81 | |
Description
General part information
RG1782-8
RC EMI Filter 1st Order Low Pass 1 Channel R = 220Ohm, C = 0.1µF Radial
Documents
Technical documentation and resources
No documents available
