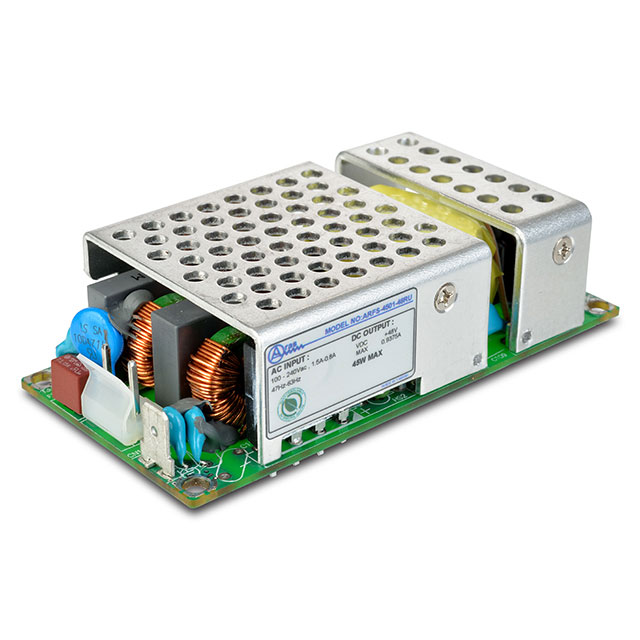

ARFS-4501-48RU
ActiveAras Power Technologies
AC/DC CONVERTER 48V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ARFS-4501-48RU
ActiveAras Power Technologies
AC/DC CONVERTER 48V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ARFS-4501-48RU |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cULus |
| Current - Output 1 | 930 mA |
| Efficiency | 87 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.98 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.50 | |
| 5 | $ 13.30 | |||
| 10 | $ 13.09 | |||
| 25 | $ 12.90 | |||
| 50 | $ 12.71 | |||
| 100 | $ 12.51 | |||
Description
General part information
ARFS-4501-48RU
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
