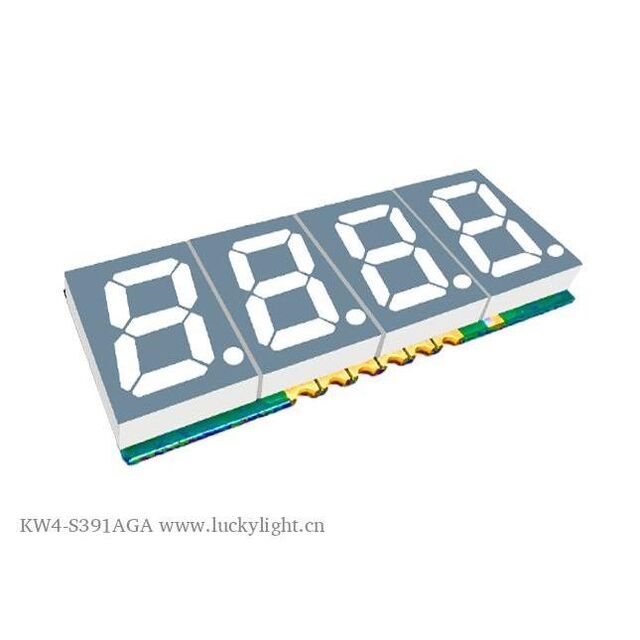

KW4-S391AGA
ActiveLuckylight
0.39INCH (10.00MM), YELLOW GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW4-S391AGA
ActiveLuckylight
0.39INCH (10.00MM), YELLOW GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW4-S391AGA |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 9.91 mm |
| Digit/Alpha Size | 0.39 in |
| Display Type | 7-Segment |
| Millicandela Rating | 8.5 mcd |
| Number of Characters | 4 |
| Package / Case | 12-SMD, No Lead |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 3.75 mm |
| Size / Dimension [x] | 0.148 " |
| Size / Dimension [y] | 39.2 mm |
| Size / Dimension [y] | 1.543 in |
| Size / Dimension [z] | 0.591 " |
| Size / Dimension [z] | 15 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 50 | $ 1.45 | |
| 100 | $ 1.42 | |||
| 500 | $ 1.38 | |||
Description
General part information
KW4-S391AGA
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 4 Character Common Anode 2V 20mA 0.591" H x 1.543" W x 0.148" D (15.00mm x 39.20mm x 3.75mm) 12-SMD, No Lead
