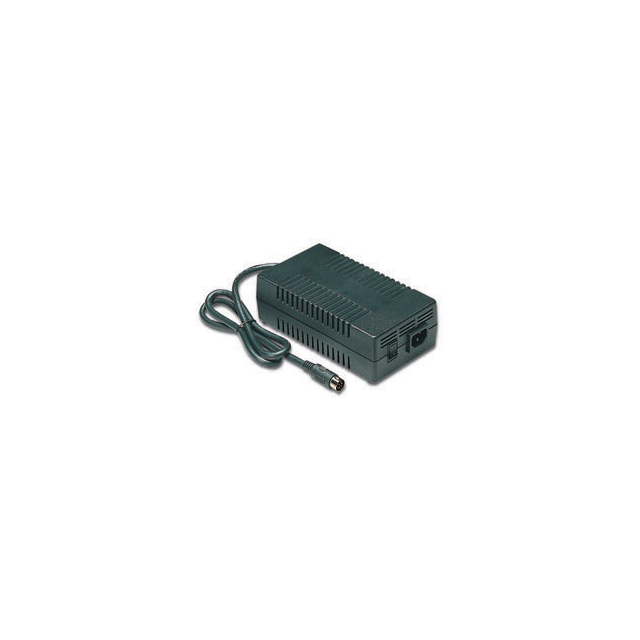

DTC80-24SX-W6
ActiveETA-USA
AC/DC DESKTOP ADAPTER 24V 80W
Deep-Dive with AI
Search across all available documentation for this part.
DTC80-24SX-W6
ActiveETA-USA
AC/DC DESKTOP ADAPTER 24V 80W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DTC80-24SX-W6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, CE, UL, TUV |
| Cord Length | 1.05 m |
| Cord Length | 41.34 in |
| Current - Output (Max) [Max] | 3.34 A |
| Efficiency | 88 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 7.4 mm, 9.4 mm |
| Output Connector [x] | 14.4 mm |
| Power (Watts) | 80 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.2 in |
| Size / Dimension [x] | 132 mm |
| Size / Dimension [y] | 2.72 in |
| Size / Dimension [y] | 69 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DTC80-24SX-W6
24V 80 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
