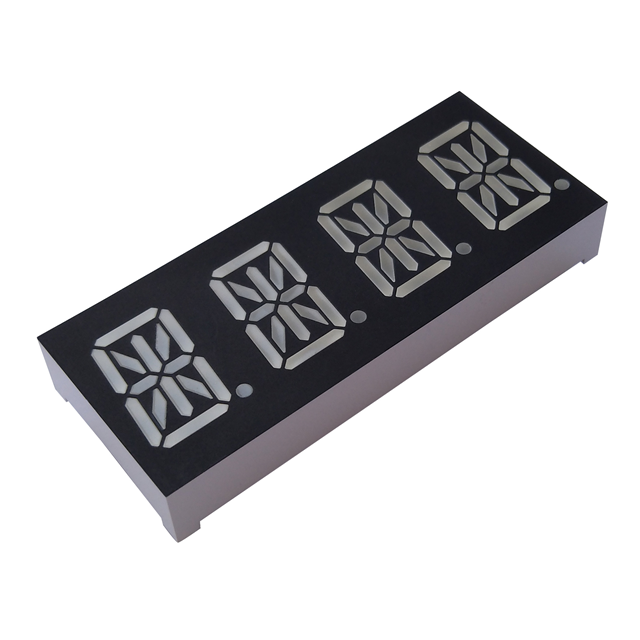

KWA4-542AVB
ActiveLuckylight
0.54 INCH (13.80 MM), RED QUADRU
Deep-Dive with AI
Search across all available documentation for this part.
KWA4-542AVB
ActiveLuckylight
0.54 INCH (13.80 MM), RED QUADRU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KWA4-542AVB |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.54 in |
| Digit/Alpha Size | 13.72 mm |
| Display Type | 14-Segment, Alphanumeric |
| Millicandela Rating | 40 mcd |
| Number of Characters | 4 |
| Package / Case | 0.6 in |
| Package / Case | 15.24 mm |
| Package / Case | 16-DIP |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 0.835 in |
| Size / Dimension [x] | 21.2 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 8.05 mm |
| Size / Dimension [z] | 0.317 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 1.15 | |
| 200 | $ 0.96 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.82 | |||
Description
General part information
KWA4-542AVB
Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 4 Character Common Anode 2V 20mA 0.835" H x 2.000" W x 0.317" D (21.20mm x 50.80mm x 8.05mm) 16-DIP (0.600", 15.24mm)
