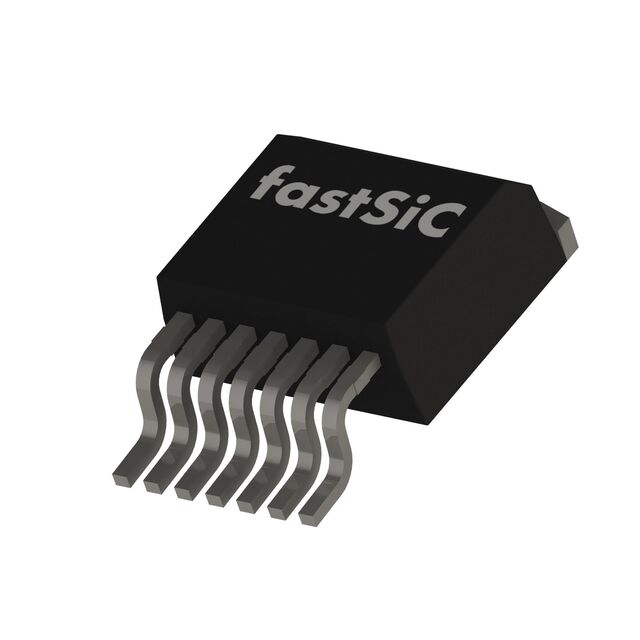

FF06030J-7A
ActivefastSiC
SICFET N-CH 650V 74A TO-263-7L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FF06030J-7A |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 74 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 125 nC |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 3015 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | D2PAK (7 Leads + Tab), TO-263-8, TO-263CA |
| Power Dissipation (Max) | 268 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 45 mOhm |
| Supplier Device Package | D2PAK-7L |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Vgs (Max) [Max] | 18 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 21.14 | |
| 10 | $ 7.75 | |||
| 100 | $ 7.22 | |||
| 4000 | $ 7.05 | |||
Description
General part information
FF06030J-7A
N-Channel 650 V 74A (Tc) 268W (Tc) Surface Mount D2PAK-7L
