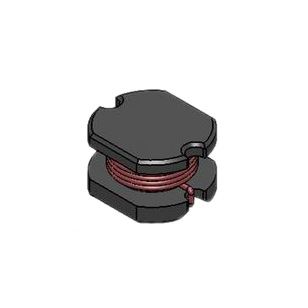

CD30D22HF-120MC
ActiveSumida America Components Inc.
FIXED IND 12UH 910MA 338MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
CD30D22HF-120MC
ActiveSumida America Components Inc.
FIXED IND 12UH 910MA 338MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CD30D22HF-120MC |
|---|---|
| Current - Saturation (Isat) | 960 mA |
| Current Rating (Amps) | 910 mA |
| DC Resistance (DCR) [Max] | 338 mOhm |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Inductance | 12 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.27 | |
Description
General part information
CD30D22HF-120MC
12 µH Unshielded Drum Core, Wirewound Inductor 910 mA 338mOhm Max Nonstandard
