UCA-3019-BN-B
ActiveAgilink Microwires
UCA BROWN 500FT, AWG30/19 600V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCA-3019-BN-B
ActiveAgilink Microwires
UCA BROWN 500FT, AWG30/19 600V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCA-3019-BN-B |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Silver Coated |
| Features | High Temperature, Chemical Resistant, UV Resistant |
| Jacket (Insulation) Diameter | 0.022 in |
| Jacket (Insulation) Diameter | 0.55 mm |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) |
| Jacket Color | Brown |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -196 °C |
| Voltage | 600 V |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 493.70 | |
| 2 | $ 476.06 | |||
| 3 | $ 458.13 | |||
| 5 | $ 420.00 | |||
| 10 | $ 399.00 | |||
Description
General part information
UCA-3019-BN-B

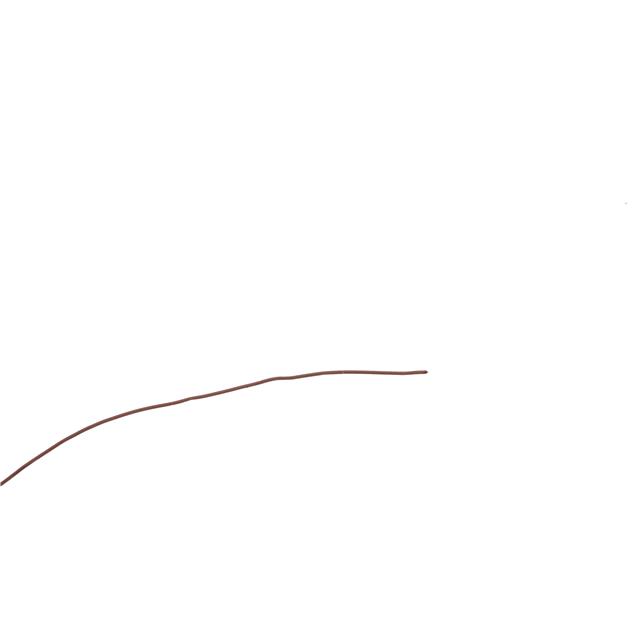

30 AWG Hook-Up Wire 19/42 Brown 600V 500.0' (152.4m)
Documents
Technical documentation and resources
