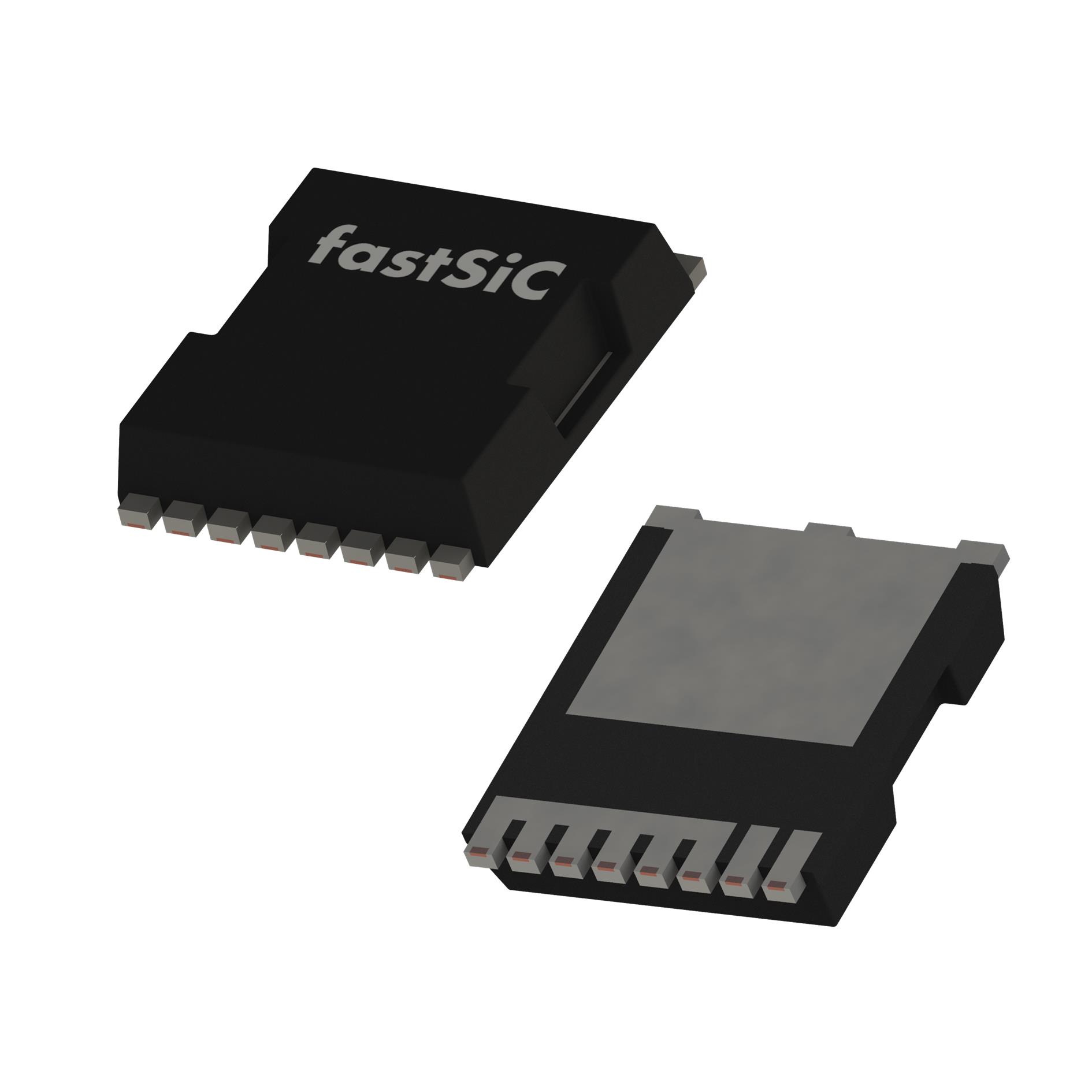

FF06100FA
ActivefastSiC
SICFET N-CH 650V 23.5A TOLL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FF06100FA
ActivefastSiC
SICFET N-CH 650V 23.5A TOLL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FF06100FA |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 23.5 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 18 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 1000 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerSFN |
| Power Dissipation (Max) | 115 W |
| Supplier Device Package | Toll |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Vgs (Max) [Max] | 18 V |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 8.67 | |
| 10 | $ 3.18 | |||
| 100 | $ 2.96 | |||
| 1200 | $ 2.89 | |||
Description
General part information
FF06100FA
N-Channel 650 V 23.5A (Tc) 115W (Tc) Surface Mount TOLL
