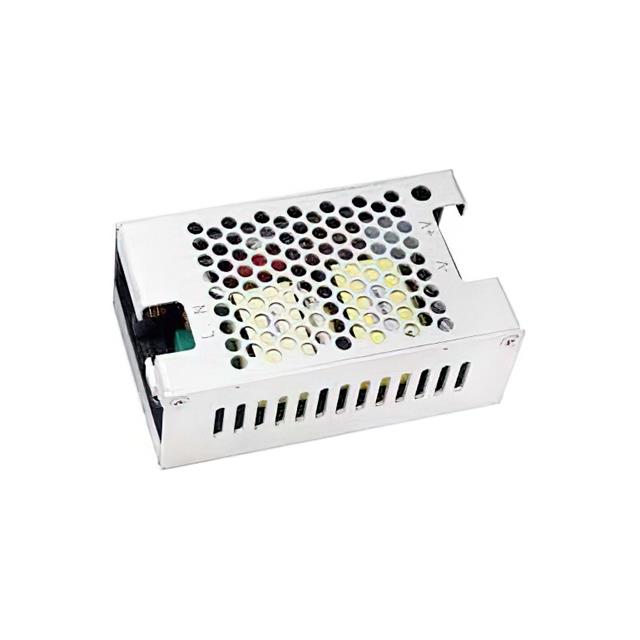

HD240E-112
ActiveDigital Power Corporation
AC/DC CONVERTER 12V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HD240E-112
ActiveDigital Power Corporation
AC/DC CONVERTER 12V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HD240E-112 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, IEC |
| Current - Output 1 | 19.5 A |
| Efficiency | 93 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.1 " |
| Size / Dimension [x] | 104.1 mm |
| Size / Dimension [y] | 2.46 " |
| Size / Dimension [y] | 62.5 mm |
| Size / Dimension [z] | 39.1 mm |
| Size / Dimension [z] | 1.54 " |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 134.05 | |
Description
General part information
HD240E-112
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
