BQ-0602W005-S4JJD0N-B0
ActiveBeking Optoelectronics

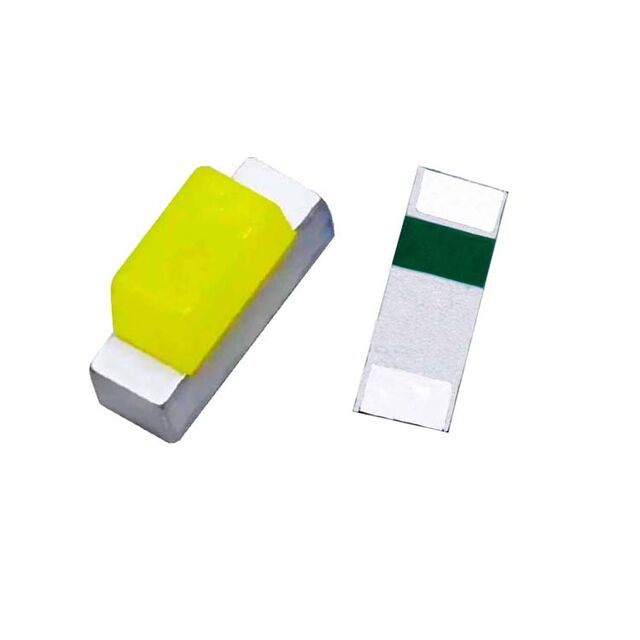

LED WHITE DIFFUSED 0602 SMD
Deep-Dive with AI
Search across all available documentation for this part.
BQ-0602W005-S4JJD0N-B0
ActiveBeking Optoelectronics
LED WHITE DIFFUSED 0602 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ-0602W005-S4JJD0N-B0 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.7 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [Max] | 330 mcd |
| Millicandela Rating [Min] | 270 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0602 |
| Package / Case | 1605 Metric |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [y] | 0.6 mm |
| Supplier Device Package | 1605 Metric |
| Supplier Device Package | 0602 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.04 | |
| 8000 | $ 0.02 | |||
| 20000 | $ 0.02 | |||
| 40000 | $ 0.01 | |||
| 60000 | $ 0.01 | |||
Description
General part information
BQ-0602W005-S4JJD0N-B0
White LED Indication - Discrete 2.95V 0602 (1605 Metric)
Documents
Technical documentation and resources
No documents available
