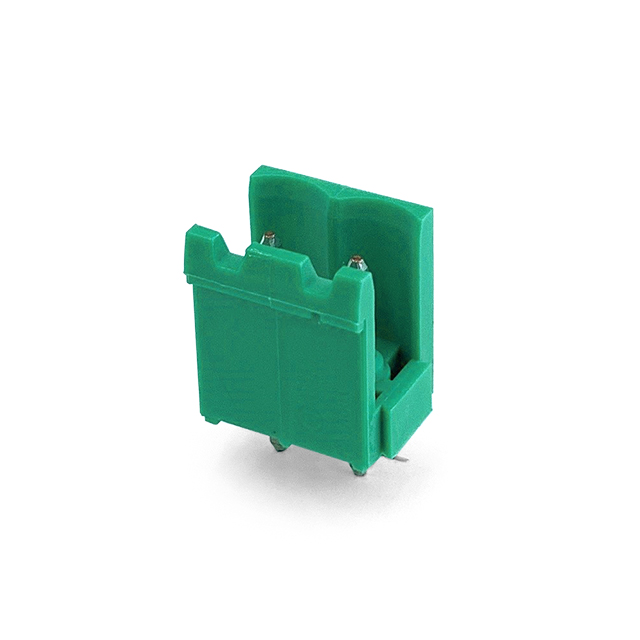

CIM020M5
ActiveSauro Electronic Connectors
TERM BLOCK HDR 2POS VERT 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
CIM020M5
ActiveSauro Electronic Connectors
TERM BLOCK HDR 2POS VERT 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CIM020M5 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 3.5 mm |
| Contact Tail Length | 0.138 in |
| Features | Interlocking (Side) |
| Header Orientation | Vertical |
| Ingress Protection | IP40 |
| Insulation Height | 0.472 in |
| Insulation Height | 12 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -50 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Header, Male Pins |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.51 | |
| 10 | $ 0.42 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.35 | |||
Description
General part information
CIM020M5
2 Position Terminal Block Header, Male Pins 0.200" (5.08mm) Vertical Through Hole
