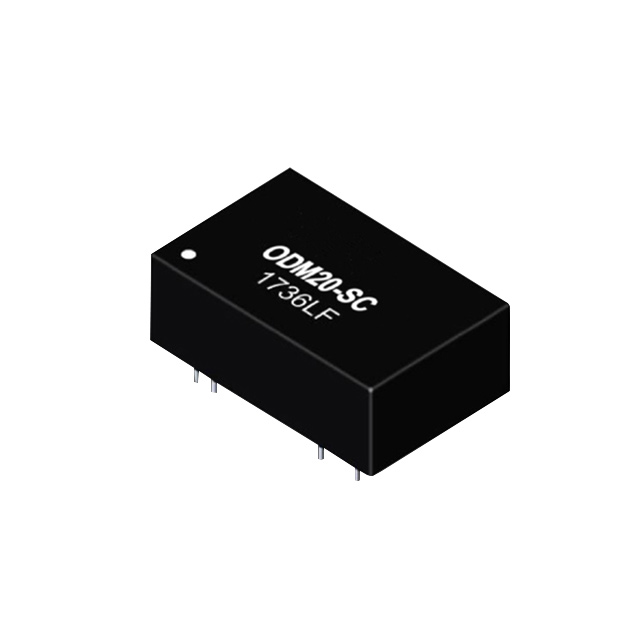

ODM20-12SC48
ActiveETA-USA
DC DC CONVERTER 12V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ODM20-12SC48
ActiveETA-USA
DC DC CONVERTER 12V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODM20-12SC48 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 12 mm |
| Size / Dimension [z] | 0.47 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.00 | |
Description
General part information
ODM20-12SC48
Isolated Module DC DC Converter 1 Output 12V 1.67A 36V - 75V Input
