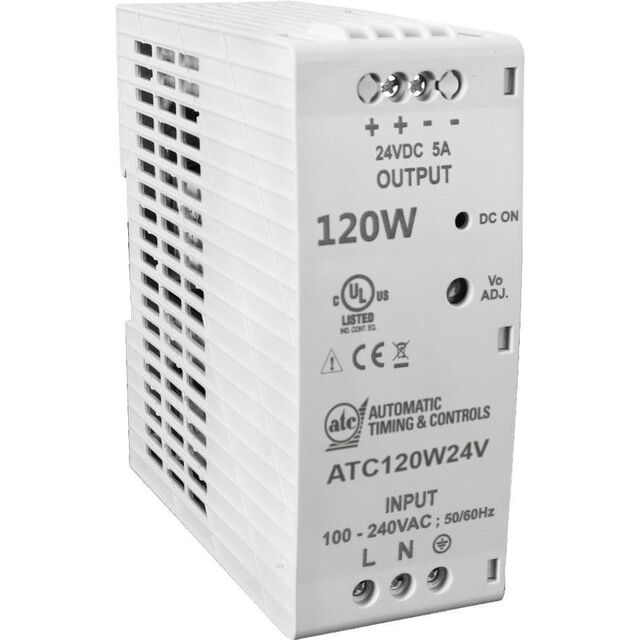

ATC120W24V
ActiveATC-Diversified Electronics
POWER SUPPLY 120 WATT 24 VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATC120W24V
ActiveATC-Diversified Electronics
POWER SUPPLY 120 WATT 24 VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATC120W24V |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 90 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 370 V |
| DC Voltage - Input (Min) [Min] | 127 V |
| Efficiency | 89 % |
| Features | Universal Input |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Size / Dimension [x] | 4.04 in |
| Size / Dimension [x] | 102.7 mm |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [z] | 4.32 in |
| Size / Dimension [z] | 109.8 mm |
| Standard Number | 62368-1, UL 508 |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 57.18 | |
| 10 | $ 53.81 | |||
Description
General part information
ATC120W24V
POWER SUPPLY 120 WATT 24 VDC
