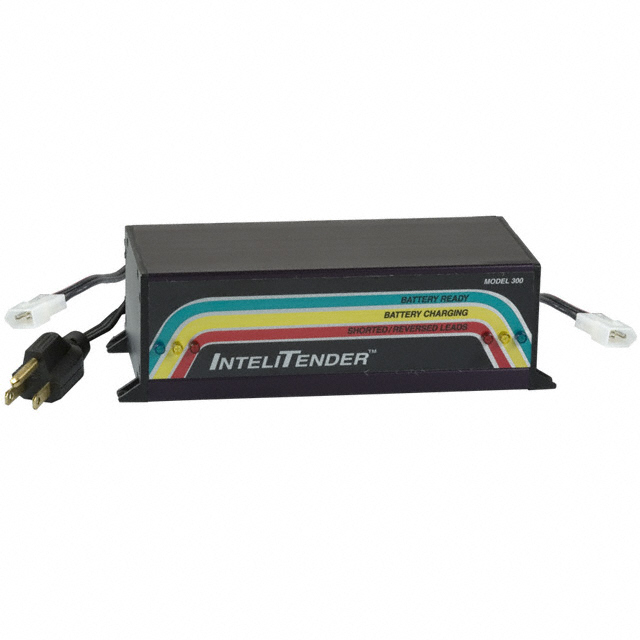

3212
ActivePatco Electronics
BATT CHRGR ENCLOSED 10V-14V 1.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3212
ActivePatco Electronics
BATT CHRGR ENCLOSED 10V-14V 1.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3212 |
|---|---|
| Battery Cell Size | 12 V |
| Battery Chemistry | Lead Acid |
| Charge Current - Max | 1.5 A |
| Charge Time | 8.5 Hrs |
| Features | Multiple Charge Modes |
| Mounting Type | Chassis Mount |
| Number of Cells | 1 |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 3.5 in |
| Size / Dimension [y] | 88.9 mm |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 2.5 in |
| Type | Enclosed |
| Voltage - Input | 120 VAC |
| Voltage - Nominal [Max] | 14 V |
| Voltage - Nominal [Min] | 10 V |
| Weight | 1200 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 651.78 | |
| 1 | $ 254.33 | |||
| 10 | $ 630.06 | |||
Description
General part information
3212
Enclosed Battery Charger 10V ~ 14V 1.5A 12V
Documents
Technical documentation and resources
