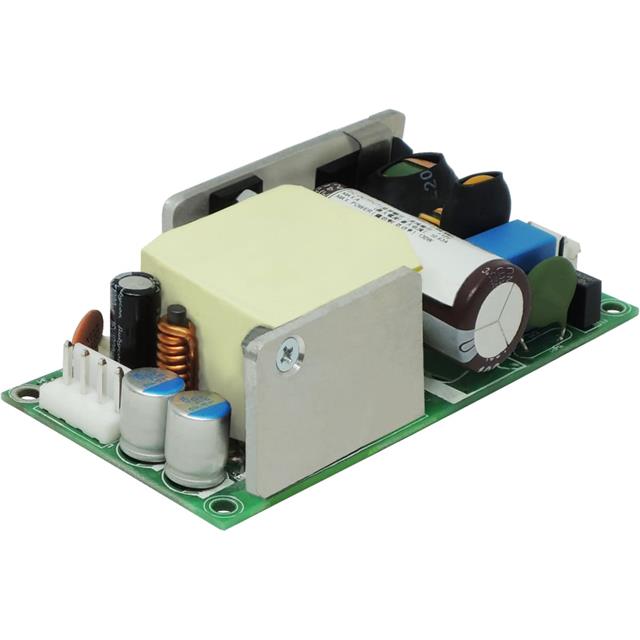

TN14-0130-27
ActiveLead Year Enterprise
AC/DC SWITCHING POWER SUPPLY 27V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TN14-0130-27
ActiveLead Year Enterprise
AC/DC SWITCHING POWER SUPPLY 27V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TN14-0130-27 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cUL, TUV, UL |
| Efficiency | 88 % |
| Features | Universal Input, Standby Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 130 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.8 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 33.69 | |
| 5 | $ 32.89 | |||
| 10 | $ 31.82 | |||
| 25 | $ 30.45 | |||
Description
General part information
TN14-0130-27
Open Frame AC DC Converters 1 Output 27V 90 ~ 264 VAC Input
