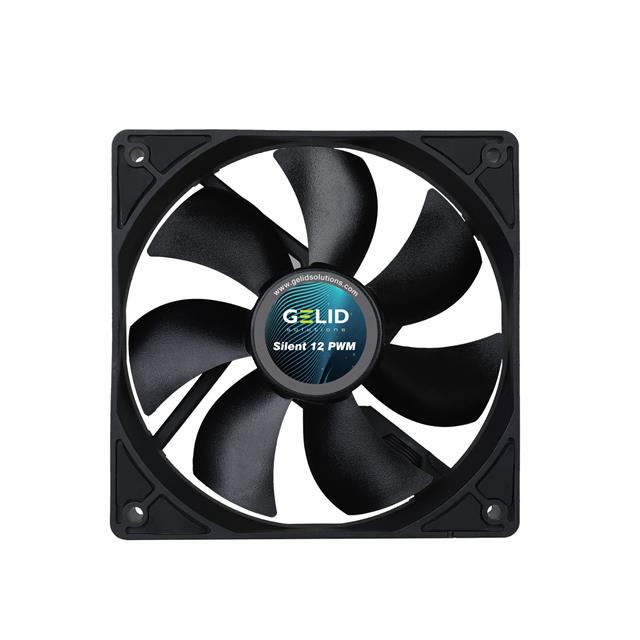

FN-PX12-16
ActiveGelid Solutions LLC
SILENT 12 PWM - BLACK
Deep-Dive with AI
Search across all available documentation for this part.
FN-PX12-16
ActiveGelid Solutions LLC
SILENT 12 PWM - BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN-PX12-16 |
|---|---|
| Air Flow | 64.5 CFM |
| Air Flow | 1.81 mł/min |
| Approval Agency | CE |
| Bearing Type | Hydrodynamic |
| Fan Type | Tubeaxial |
| Features | PWM Control |
| Noise | 25.5 dB |
| RPM [Max] | 1600 RPM |
| RPM [Min] | 750 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 0.063 in H2O |
| Static Pressure | 15.7 Pa |
| Termination | 4 Position Rectangular Connector |
| Voltage - Rated | 12 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 12.41 | |
| 10 | $ 11.06 | |||
| 25 | $ 10.57 | |||
| 50 | $ 10.21 | |||
| 100 | $ 9.86 | |||
| 250 | $ 9.42 | |||
| 500 | $ 9.10 | |||
Description
General part information
FN-PX12-16
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Hydrodynamic 64.5 CFM (1.81m³/min) 4 Position Rectangular Connector
