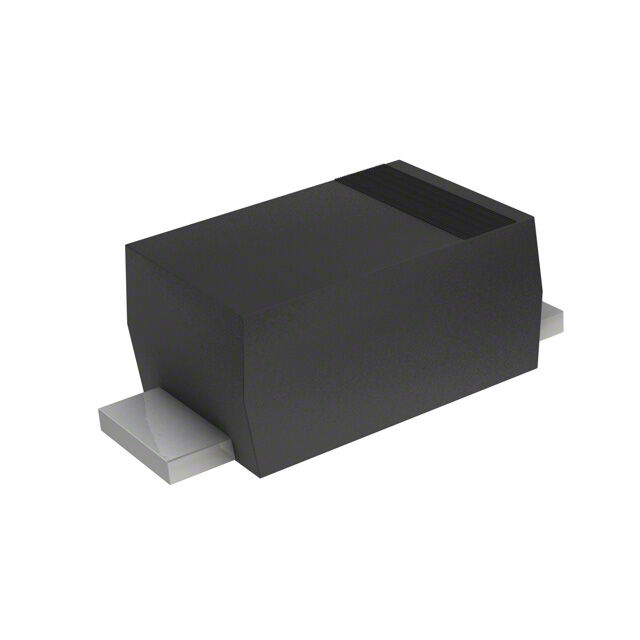

TV02W6V5-HF
ActiveComchip Technology
TVS DIODE 6.5VWM 11.2VC SOD123
Deep-Dive with AI
Search across all available documentation for this part.
TV02W6V5-HF
ActiveComchip Technology
TVS DIODE 6.5VWM 11.2VC SOD123
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TV02W6V5-HF |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 17.86 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-123 |
| Power - Peak Pulse | 200 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-123 |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 7.22 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 11.2 V |
| Voltage - Reverse Standoff (Typ) | 6.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.11 | |
| 6000 | $ 0.10 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
TV02W6V5-HF
11.2V Clamp 17.86A Ipp Tvs Diode Surface Mount SOD-123
Documents
Technical documentation and resources
No documents available
