ISFS-030.8-NONC2
ActiveKF Control
PROXIMITY SENSOR IND 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISFS-030.8-NONC2
ActiveKF Control
PROXIMITY SENSOR IND 0.8MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISFS-030.8-NONC2 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyamide (PA), Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN-NO, 3-Wire |
| Package / Case | Cylinder |
| Sensing Distance | 0.8 mm |
| Sensing Distance | 0.031 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.00 | |
| 25 | $ 27.00 | |||
Description
General part information
ISFS-030.8-NONC2

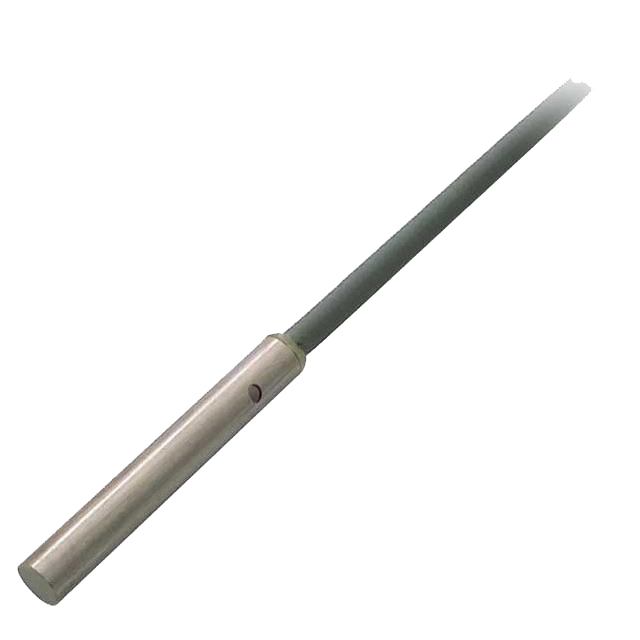

Inductive Proximity Sensor 0.031" (0.8mm) IP67 Cylinder
