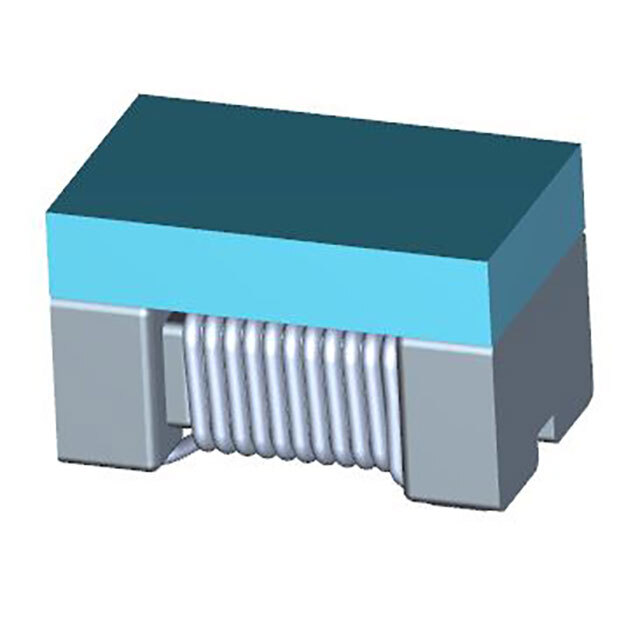

CC2012A-601
ActiveMentech Technology USA Inc.
CMC 330MA 2LN 600 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC2012A-601
ActiveMentech Technology USA Inc.
CMC 330MA 2LN 600 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC2012A-601 |
|---|---|
| Current Rating (Max) | 330 mA |
| DC Resistance (DCR) (Max) [Max] | 350 mOhm |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Impedance @ Frequency | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 0.15 | |
| 2000 | $ 0.07 | |||
| 6000 | $ 0.06 | |||
| 10000 | $ 0.04 | |||
Description
General part information
CC2012A-601
2 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz 330mA DCR 350mOhm
