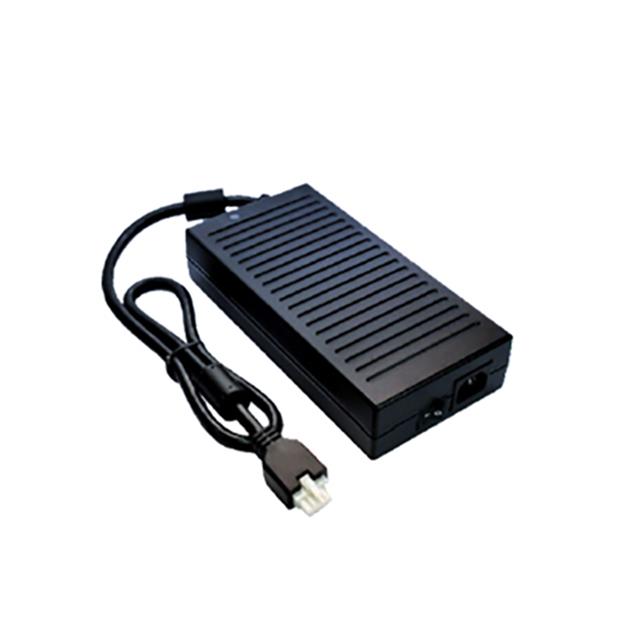

DTMF400-28SX-F-W6
ActiveETA-USA
AC/DC DESKTOP ADAPTER 28V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DTMF400-28SX-F-W6
ActiveETA-USA
AC/DC DESKTOP ADAPTER 28V 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DTMF400-28SX-F-W6 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, FCC, CB, TUV, cUL |
| Cord Length | 31.5 in |
| Cord Length | 0.8 m |
| Current - Output (Max) [Max] | 17.28 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Rectangular, 10 Position |
| Power (Watts) | 400 W |
| Region Utilized | International |
| Size / Dimension [x] | 8.74 " |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [y] | 112 mm |
| Size / Dimension [y] | 4.41 " |
| Size / Dimension [z] | 1.77 in |
| Size / Dimension [z] | 45 mm |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 316.00 | |
Description
General part information
DTMF400-28SX-F-W6
28V 400 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
